    LNG DN200 Cryogenic Handwheel Flange Globe Valve

    Ask Lasest Price
    Brand Name : SichuanLiangchuan
    Model Number : Globe valve
    Certification : CE/ISO/EAC
    Price : $559.00
    Payment Terms : T/T
    Supply Ability : 3000 Set/Sets per Month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    LNG DN200 Cryogenic Handwheel Flange Globe Valve

    DN15 Flange Connection 1 Year Warranty for LNG Cryogenic Globe Valve

    Product Description

    Valve Type:

    Globe Valve

    Operated Type:

    Handwheel

    Connection Type:

    Flange

    Structure Type:

    Through Way Type

    Nominal Diameter:

    DN10~300mm

    Nominal Pressure:

    PN4.0MPa


    Material:

    Valve Body:ZGOCr18Ni9

    Valve Bonnet:OCr18Ni9

    Valve Stem:OCr18Ni9

    Stuffing:PTFE

    Disc seal ring:PCTFE

    Suitable Medium:

    LO2,LN2,LAr,LNG,etc

    Suitable Temparature:

    (-196℃~+80℃)

    Design and Manufacture:

    Conform to GB/T24925-2010

    Testing:

    Conform to GB/T13927-2008

    Valve Lifetime:

    Specified according to usage frequency and installation location

    Lead Time:

    Customized valves are usually 30~45 days;

    Stock valves are usually within 5 days.


    For your company to order valve products in our company, our factory makes the following commitments in terms of after-sales service:


    1. Our company implements warranty on product quality;


    2. After the contract is signed, guarantee the quality and quantity, and deliver on time;


    3. The company ensures that the valve products provided meet the contract targets


    4. For technical consultation of the demand side, give answers at any time;


    5. When delivering the equipment, the factory delivers the following materials to the purchaser: delivery list, product certificate, product sample, product instruction manual, technical information;

    After receiving a letter or a phone call from the user regarding quality issues, we guarantee a response within 24 hours to resolve the issue as quickly as possible

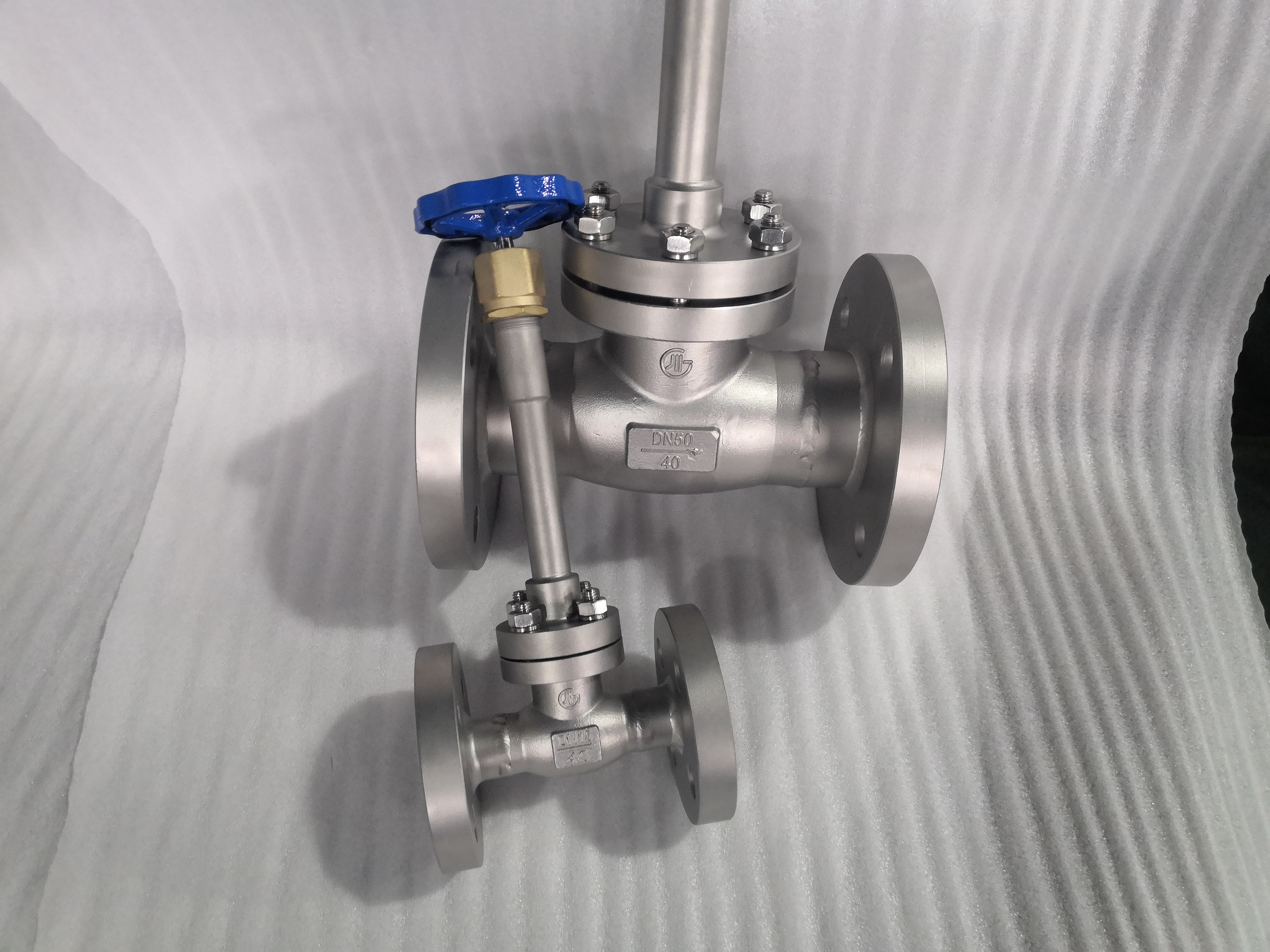

    Valves Details


    Valve Application

    Cryogenic valves are widely used in cryogenic liquid storage and transportation, air separation, oil and gas, food and beverage carbonation, pharmaceuticals, petroleum, chemical,metallurgical,water treatment,aerospace and other industries,such as cryogenic liquid storage tank,tank truck,gasifier,gasification station,air dispersion equipment,air separation plants, petrochemical tail gas separation equipment,pressure swing adsorption oxygen generator,cold boxes,etc.


    Valve Package


    FAQ


    Q. Are there any special requirements for OEM purchases?
    A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

    Q. Do Liangchuan products come with a warranty ?
    A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.

    Q. How can I get some samples?

    A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.

    Q. What's the MOQ of your products?

    A. Our MOQ is one (1) piece/set.

    Q. Are you a manufacturer with your own factory?

    A. Yes, we are the manufacturer for more than 8 years
