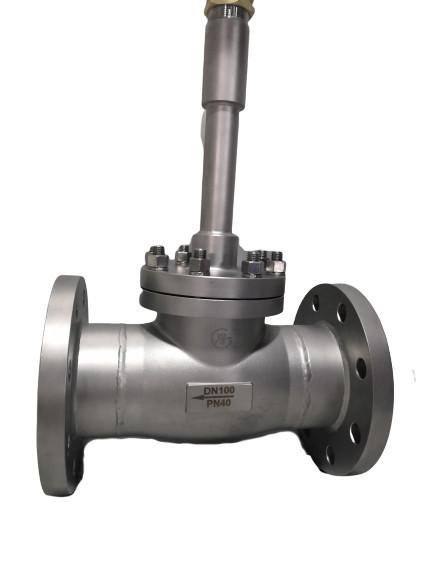

    Stainless Steel Cryogenic Globe Valve Flange Connection 1 Year Warranty

    Ask Lasest Price
    Brand Name : SichuanLiangchuan
    Model Number : CDJ61F-40P
    Supply Ability : 3000 Set/Sets per Month
    Price : $559.00
    Certification : CE
    Payment Terms : T/T, D/A
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Stainless Steel Cryogenic Globe Valve Flange Connection 1 Year Warranty

    Stainless Steel Cryogenic Globe Valve Flange Connection 1 Year Warranty

    Product Description

    Cryogenic globe valve implementation standard


    Design and manufacture of low temperature globe valve: JB / T7749-95


    Low-temperature globe valve structure length: GB / T12221-89


    Low-temperature shut-off valve connection end: GB / T9113-2000, HG20592-97, SH3406-96GB / T12224-89


    Inspection and test of cryogenic globe valve: JB / T7749-95


    The opening and closing part of the flange cut-off valve is a plug-shaped valve disc. The sealing surface has a flat surface or a sea cone surface.


    The valve disc moves linearly along the center line of the valve seat. Shut-off valve can be used to control the flow of various types of fluids such


    as air, water, steam, various corrosive media, mud, oil and so on. Globe valves are ideal for shut-off and throttling applications. Due to the


    relatively short opening or closing stroke of this type of valve, it also has a very reliable shut-off function.


    Valve Type:

    Globe Valve

    Operated Type:

    Handwheel

    Connection Type:

    Flange

    Structure Type:

    Through Way Type

    Nominal Diameter:

    DN10~300mm

    Nominal Pressure:

    PN4.0MPa

    CL300

    Material:

    Valve Body:ZGOCr18Ni9

    Valve Bonnet:OCr18Ni9

    Valve Stem:OCr18Ni9

    Stuffing:PTFE

    Disc seal ring:PCTFE

    Suitable Medium:

    LO2,LN2,LAr,LNG,LC2H4,etc

    Suitable Temparature:

    (-196℃~+80℃)

    Design and Manufacture:

    Conform to GB/T24925-2010

    Testing:

    Conform to GB/T13927-2008

    Valve Lifetime:

    Specified according to usage frequency and installation location

    Lead Time:

    Customized valves are usually 30~45 days;

    Stock valves are usually within 5 days.

    Features:

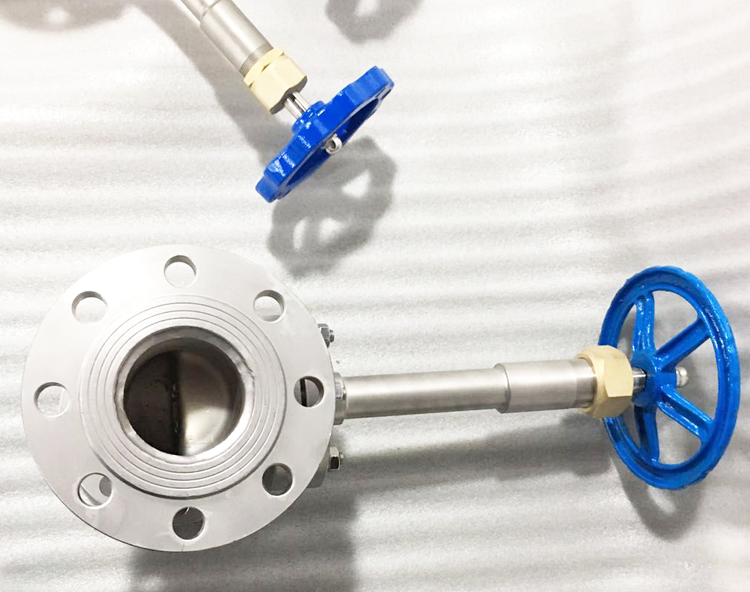

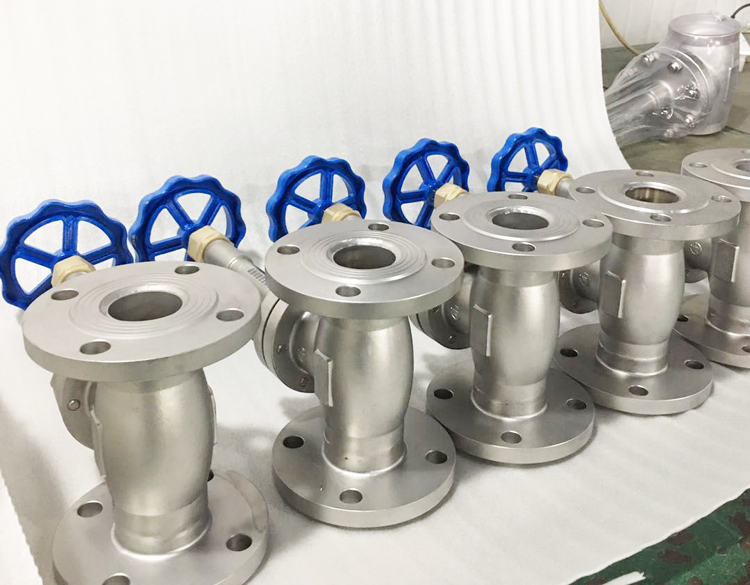

    Valves Details

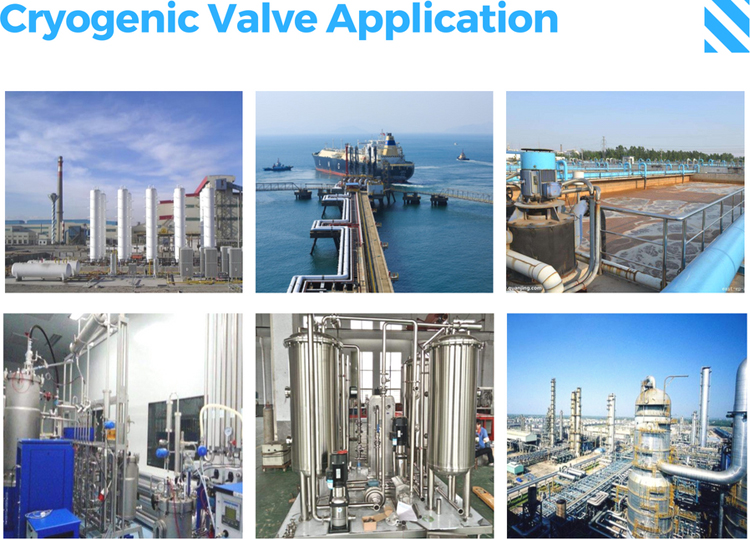

    Valve Application

    Cryogenic valves are widely used in cryogenic liquid storage and transportation, air separation, oil and gas, food and beverage carbonation, pharmaceuticals, petroleum, chemical,metallurgical,water treatment,aerospace and other industries,such as cryogenic liquid storage tank,tank truck,gasifier,gasification station,air dispersion equipment,air separation plants, petrochemical tail gas separation equipment,pressure swing adsorption oxygen generator,cold boxes,etc.



    Valve Package


    FAQ


    Q. Are there any special requirements for OEM purchases?
    A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

    Q. Do Liangchuan products come with a warranty ?
    A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.

    Q. How can I get some samples?

    A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.

    Q. What's the MOQ of your products?

    A. Our MOQ is one (1) piece/set.

    Q. Are you a manufacturer with your own factory?

    A. Yes, we are the manufacturer for more than 8 years
